Bottom Roller for Kobelco 7080 Crawler Crane
Crane Bottom Roller is a key part in the crawler crane undercarriage.It consists of wheel body,copper bushing,shaft,end cover and oil seal & O-ring.Our crane bottom roller is specially designed for Kobelco 7080 Crawler Crane,perfect fit.
Description
Crane Bottom Roller is a key part in the crawler crane undercarriage.It consists of wheel body,copper bushing,shaft,end cover and oil seal & O-ring.Our crane bottom roller is specially designed for Kobelco 7080 Crawler Crane,perfect fit.
Kobelco 7080 Track Roller Parameters
Product name: Bottom roller for Kobelco 7080 crawler crane
Applicable Model: Kobelco 7080 crawler crane
Package: Export standard plywood pallet
Certifications: ISO9001 &SGS
Process technology: Forging
Trade terms: EXW /FOB / CIF /CFR
Material: 40Mn2 Alloy Steel
Advantages of Kobelco 7080 Bottom Roller
1 Precision forged with 40Mn2 high strength alloy steel, adopts quenching and tempering dual heat treatment,surface hardness can reach HRC 55 – 60.
2 With a strict CNC machining tolerance of ±0.03mm,the crane bottom roller is specially designed for Kobelco 7080 crawler crane.
3 Supported by ISO9001 and SGS dual certification,we are a preferred brand for clients worldwide.Quality is guaranteed.With 2500 hours warranty,a reliable choice for customers.

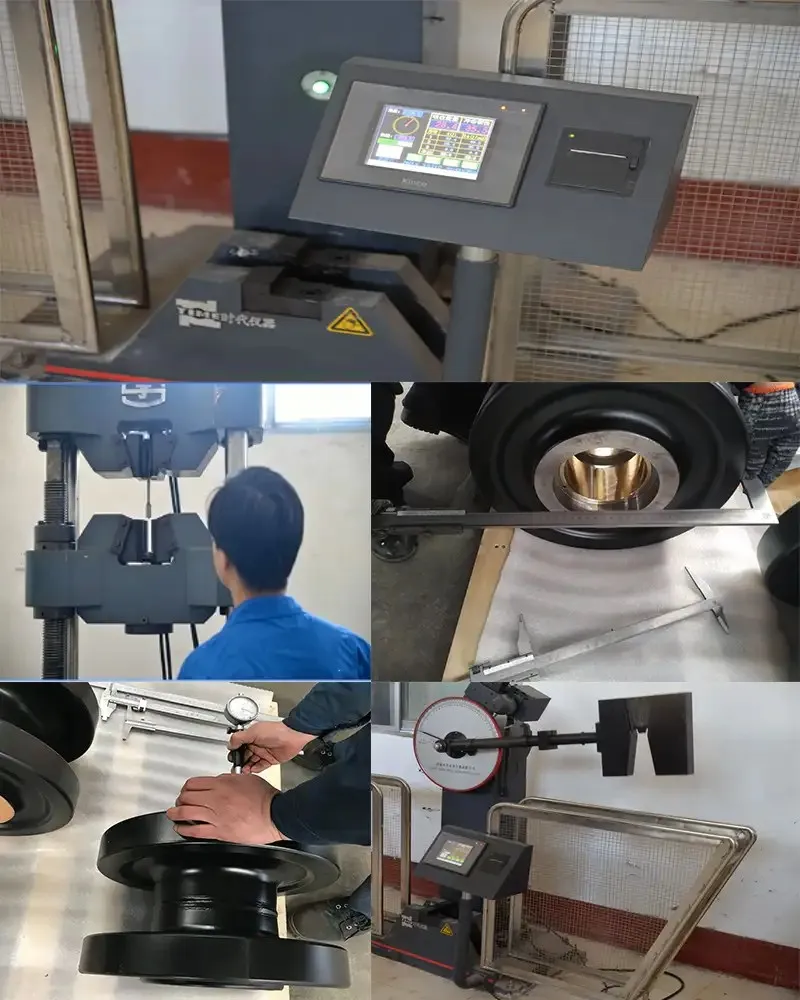

4 Having passed CMM inspection and dynamic load testing, this bottom roller performs reliably in heavy-duty and muddy mining environments.

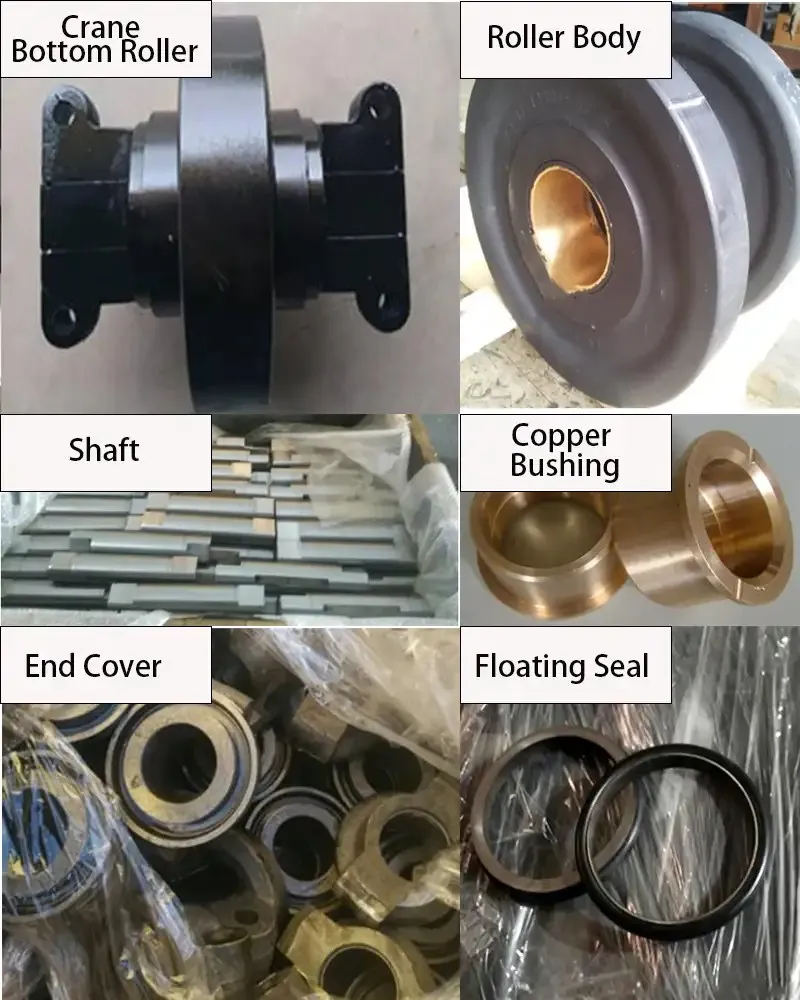

Crane Bottom roller key components parameters
1 Wheel body:the wheel body adopt 40Mn2 alloy steel with hard-wearing properties.it can extend crane bottom roller’s service life.
2 copper bushing:100% fine copper bushing, instead of duplex metal (Iron and Copper). The thickness of the bushing is 6mm-10mm,making the crane bottom roller durable.
3 End cover:The end cover of crane bottom roller is made of ductile iron, featuring high strength, excellent wear resistance and stable dimensions.
4 Float seal:Equipped with 100% matched float seal for perfect sealing,it effectively prevents oil leakage.This ensures stable internal lubrication, reduces maintenance and extends the service life of the undercarriage.
Other brands we can provide
We can also provide the crawler crane undercarriage parts for the following brands.
Ruston Bucyrus / FUWA / LIMA / SANY / XCMG / ZOOMLION / LIEBHERR / Link-Belt / HSC CRANES HSC / TEREX AMERICAN / IHI / HITACHI / SUMITOMO / TEREX DEMAG / Manitowoc / KOBELCO /NIPPON SHARYO / AMERICAN
